VT101D
1.Screen Size: 10.1 inch

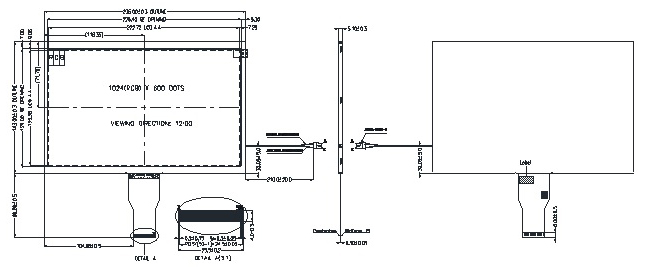

2.Dimension (W x H x T): 235.0 x 143.0 x 5.1 mm
3.Active Area: 222.72 x 125.28 mm
4.Resolution: 1024x(RGB)x600 (pixels)
5.View angle (U/D/L/R): 55/65/65/65
6.Brightness:350 cd/m2
7.Contrast Ratio:500:1
8.Interface: RGB interface
Pin Symbol Pin Symbol Pin Symbol
1 LED + 21 G6 41 VGH
2 LED + 22 G5 42 VGL
3 LED - 23 G4 43 AVDD
4 LED- 24 G3 44 RESET
5 GND 25 G2 45 NC
6 VCOM 26 G1 46 VCOM
7 VDD 27 G0 47 DITH
8 MODE 28 R7 48 GND
9 DE 29 R6 49 NC
10 VSYNC 30 R5 50 NC
11 HSYNC 31 R4
12 B7 32 R3
13 B6 33 R2
14 B5 34 R1
15 B4 35 R0
16 B3 36 GND
17 B2 37 DCLK
18 B1 38 GND
19 B0 39 L/R
20 G7 40 U/D
