  • LCD Graphic Module 240x64
VG240641

1.Built-in controller T6963C or equivalent
2.+ 5V single power supply
3.1/64 duty cycle
4.LED B/L pins: A/K
5.Backlight: LED B/L
6.Option: External Negative Voltage

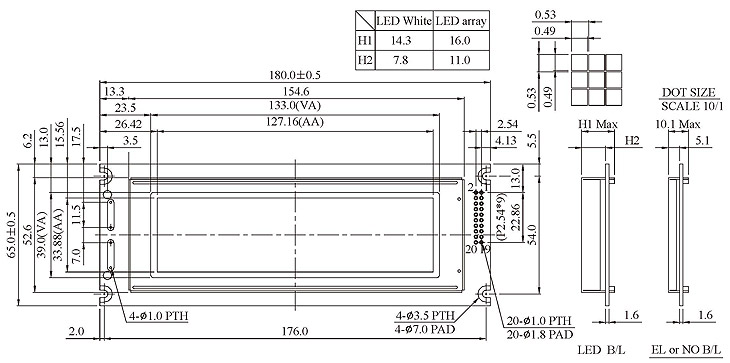

Item Standard Value Unit
Module Dimension 180.0 x 65.0 mm
Viewing Area 133.0 x 39.0 mm
Active Area 127.16 x 33.88 mm
Dot Size 0.49 x 0.49 mm
Dot Pitch 0.53 x 0.53 mm
Item Symbol Condition Typical Value Unit
Input Voltage VDD 25 ℃ 5.0 V
Supply Current IDD VDD = +5V 45.0 mA
LCD Driving Voltage VDD - VO 25 ℃ 11.5 V
LED Forward Voltage Vf 25 ℃ 4.2 V
LED Forward Current If 25 ℃ 660 mA
Pin Symbol Function
1 FG Frame ground
2 VSS GND
3 VDD +5V
4 VO Contrast Adjustment
5 /WR Data write
6 /RD Data read
7 /CE Chip enable
8 C/D Command/data read/write
9 VEE Negative Voltage output
10 /RST Reset signal
11~18 DB0~DB7 Data bus line
19 FS Font select(H:6x8, L:8x8)
20 NC No connection
