VT050H
1.Screen Size: 5.0 inch

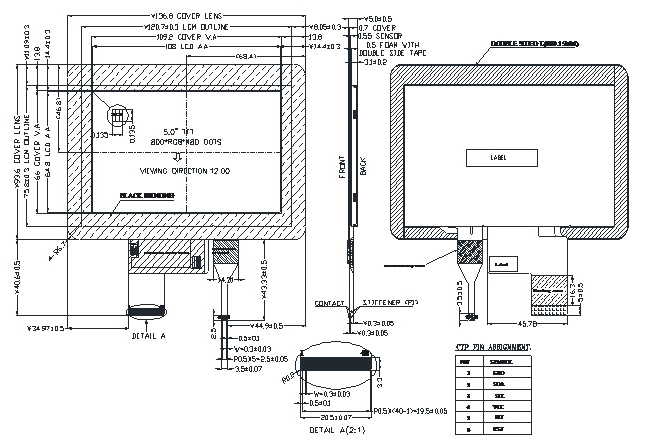

2.Dimension (W x H x T): 136.8 x 93.6 x 5.0 mm
3.Active Area: 108 x 64.8 mm
4.Resolution: 800x(RGB)x480 (pixels)
5.View angle (U/D/L/R): 50/65/65/65
6.Brightness:400 cd/m2
7.Contrast Ratio: 500:1
8.Interface: RGB interface
Pin Symbol Pin Symbol Pin Symbol
1 LEDK 21 B0
2 LEDA 22 B1
3 GND 23 B2
4 VCC 24 B3
5 R0 25 B4
6 R1 26 B5
7 R2 27 B6
8 R3 28 B7
9 R4 29 GND
10 R5 30 CLK
11 R6 31 DISP
12 R7 32 HSYNC
13 G0 33 VSYNC
14 G1 34 DEN
15 G2 35 NC
16 G3 36 GND
17 G4 37 NC
18 G5 38 NC
19 G6 39 NC
20 G7 40 NC
