VT040D
1. Screen Size: 3.95 inch
2. Dimension (W x H x T): 77.36 x 80.28 x 3.07 mm
3. Active Area: 71.86 x 70.18 mm
4. Resolution: 480x(RGB)x480 (pixels)
5. View angle (U/D/L/R): 80/80/80/80
6. Brightness: 900 cd/m2 TYP
7. Contrast Ratio: 800:1 TYP
8. Interface: MIPI
9. Option: N.C
Pin No Symbol Description Input/Output Note
1 GND Ground P
2 LED K LED- P
3 NC Not connect -
4 LED A LED+ P
5 GND Ground P
6 RESET Reset pin I
7 GND Ground P
8 IOVCC Power supply for I/O P
9 GND Ground P
10 VDD Power supply for analog P
11 GND Ground P
12 D1P MIPI DSI differential data 1 positive I
13 D1N MIPI DSI differential data 1 negative I
14 GND   P
15 CLKP MIPI DSI differential clock positive I
16 CLKN MIPI DSI differential clock negative I
17 GND Ground P
18 D0P MIPI DSI differential data 0 positive I
19 D0N MIPI DSI differential data 0 negative I
20 GND Ground P
21~26 NC Not connect -
27~28 GND Ground P
29 NC Not connect -
30 GND Ground P

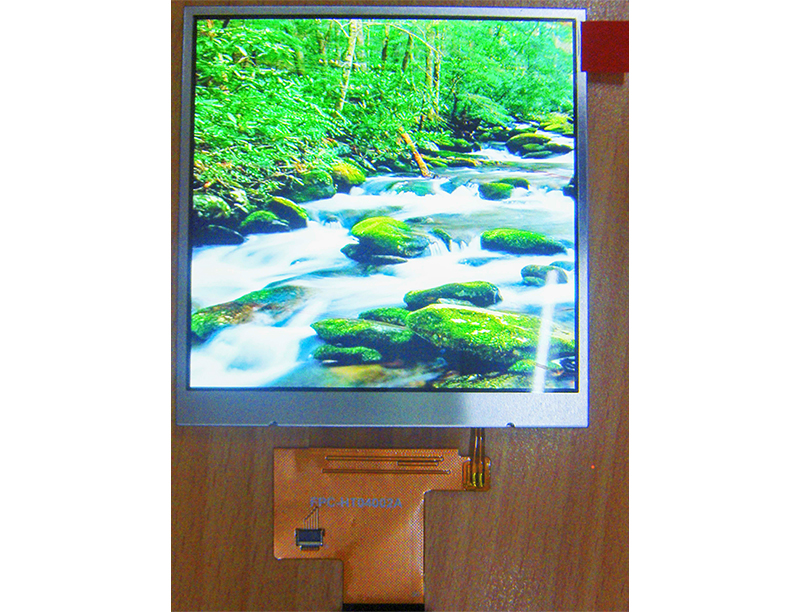

3.95 Inch VT040D TFT Module
