VT028K
1. Screen Size: 2.8 inch
2. Dimension (W x H x T): 50.0 x 69.2 x 3.0 mm
3. Active Area: 43.2 x 57.45 mm
4. Resolution: 240x(RGB)x320 (pixels)
5. View angle (U/D/L/R): 80/80/80/80
6. Brightness: 300 cd/m2 TYP
7. Contrast Ratio: 800:1 TYP
8. Interface: 8080 parallel(9/18 bit)
9. Option: N.C
Pin No Symbol Description Input/Output Note
1 IM0 Interface select I
2 IM3 Interface select- I
3~6 LED K4~K1 LED- P
7 LED A LED+ P
8 RESET RESET I
9~12 GND Ground P
13~30 DB17~DB0 Data bus I
31 NC Not connect -
32 GND Ground P
33 NRD Read I
34 NWR Write I
35 NDC(RS) Data/Command select I
36 VCC Power supply for I/O P
37~39 GND Ground P
40 VCI Power supply for analog P

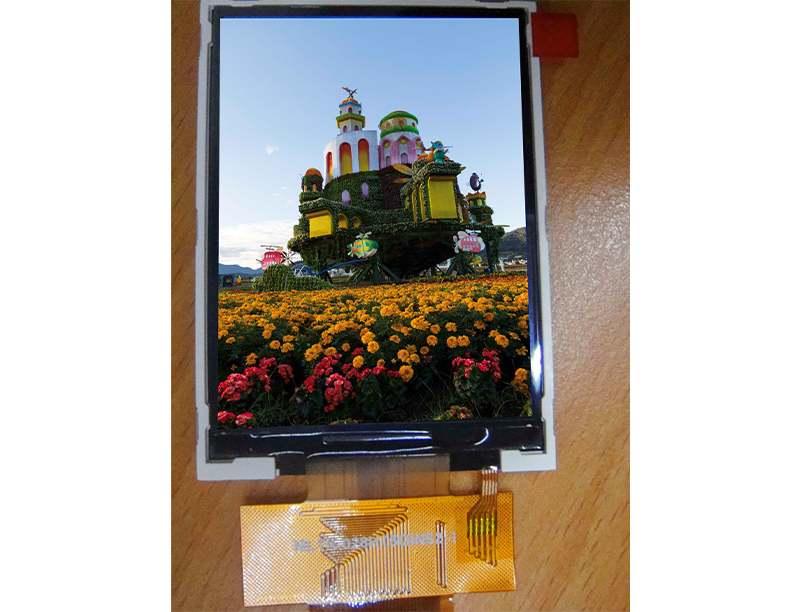

2.8 Inch VT028K TFT Module
