VT043F
1.Screen Size: 4.3 inch

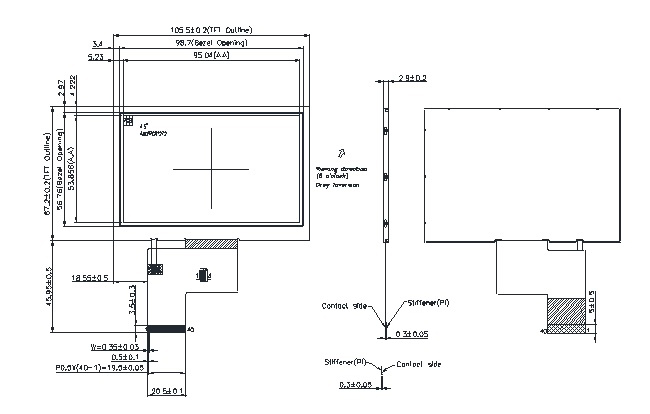

2.Dimension (W x H x T): 105.5 x 67.2 x 2.9 mm
3.Active Area: 95.04 x 53.856 mm
4.Resolution: 480x(RGB)x272 (pixels)
5.View angle (U/D/L/R): 50/60/60/60
6.Brightness: 500 cd/m2
7.Contrast Ratio: 400:1
8.Interface: RGB interface
Pin Symbol Pin Symbol Pin Symbol
1 LED- 21 B0
2 LED+ 22 B1
3 GND 23 B2
4 VDD 24 B3
5 R0 25 B4
6 R1 26 B5
7 R2 27 B6
8 R3 28 B7
9 R4 29 GND
10 R5 30 DCLK
11 R6 31 DISP
12 R7 32 HSYNC
13 G0 33 VSYNC
14 G1 34 DE
15 G2 35 NC
16 G3 36 GND
17 G4 37 NC(XR)
18 G5 38 NC(YD)
19 G6 39 NC(XL)
20 G7 40 NC(YU)
