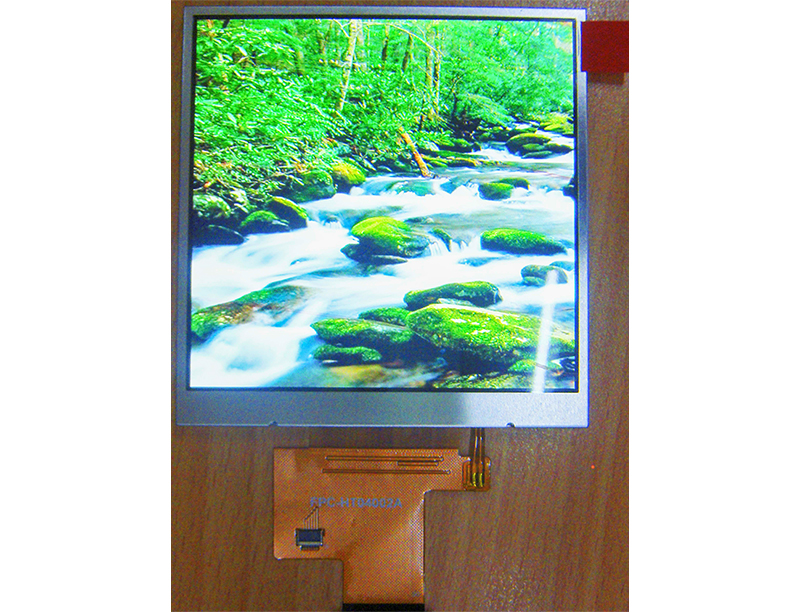

VT040D

1. Screen Size: 3.95 inch

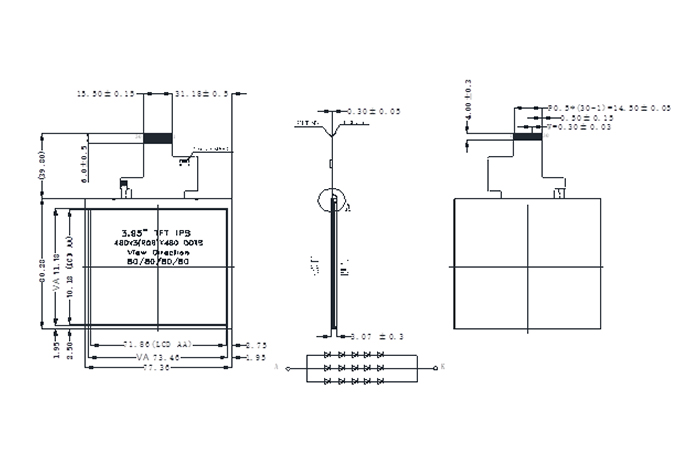

2. Dimension (W x H x T): 77.36 x 80.28 x 3.07 mm
3. Active Area: 71.86 x 70.18 mm
4. Resolution: 480x(RGB)x480 (pixels)
5. View angle (U/D/L/R): 80/80/80/80
6. Brightness: 900 cd/m2 TYP
7. Contrast Ratio: 800:1 TYP
8. Interface: MIPI
9. Option: N.C

спрашивать

Pin No	Symbol	Description	Input/Output
1	GND	Ground	P
2	LED K	LED-	P
3	NC	Not connect	-
4	LED A	LED+	P
5	GND	Ground	P
6	RESET	Reset pin	I
7	GND	Ground	P
8	IOVCC	Power supply for I/O	P
9	GND	Ground	P
10	VDD	Power supply for analog	P
11	GND	Ground	P
12	D1P	MIPI DSI differential data 1 positive	I
13	D1N	MIPI DSI differential data 1 negative	I
14	GND		P
15	CLKP	MIPI DSI differential clock positive	I
16	CLKN	MIPI DSI differential clock negative	I
17	GND	Ground	P
18	D0P	MIPI DSI differential data 0 positive	I
19	D0N	MIPI DSI differential data 0 negative	I
20	GND	Ground	P
21~26	NC	Not connect	-
27~28	GND	Ground	P
29	NC	Not connect	-
30	GND	Ground	P
