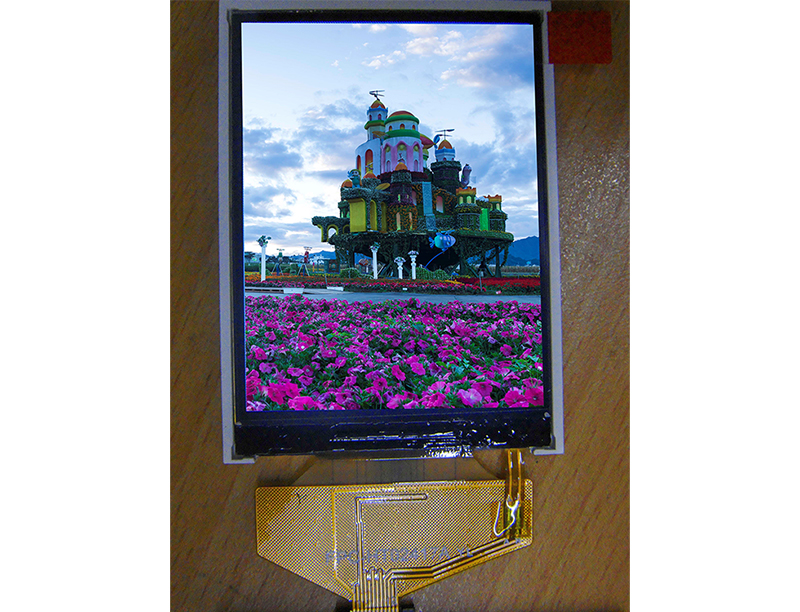

VT024K
1. Screen Size: 2.4 inch
2. Dimension (W x H x T): 42.72 x 58.36 x 2.55 mm
3. Active Area: 36.72 x 48.96 mm
4. Resolution: 240x(RGB)x320 (pixels)
5. View angle (U/D/L/R): 80/80/80/80
6. Brightness: 400 cd/m2 TYP
7. Contrast Ratio: 800:1 TYP
8. Interface: SPI-4
9. Option: N.C
Pin No Symbol Description Input/Output Note
1 VSS Ground P
2 SENSOR No Connect NC
3 VCC Power supply P
4 SDA SPI Data I
5 SCL SPI Clock I
6 CD serial interface D/C(RS) I
7 /RST RESET I
8 CS0 Chip select I
9 LED A LED+ P
10 LED K LED- P
11 SENSOR No Connect NC
12 VSS Ground P
