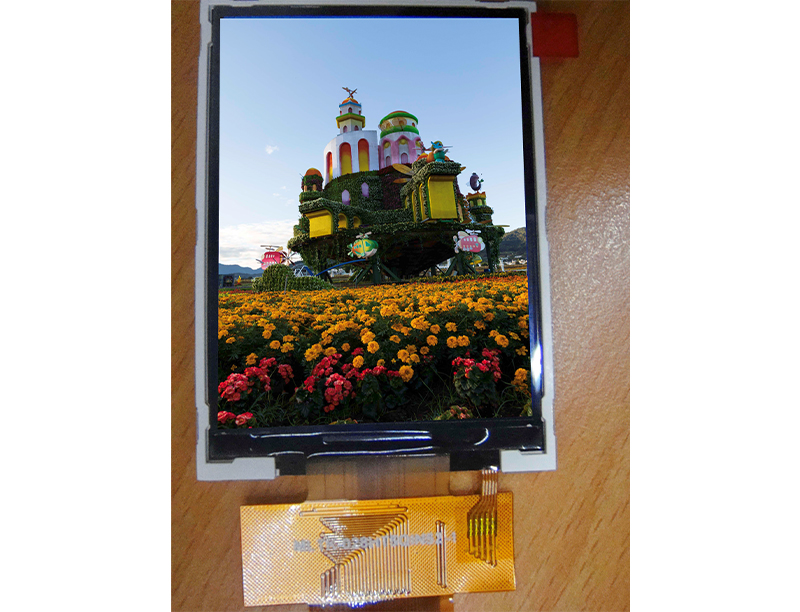

VT028K
VT028K
VT028K
1. Screen Size: 2.8 inch
2. Dimension (W x H x T): 50.0 x 69.2 x 3.0 mm
3. Active Area: 43.2 x 57.45 mm
4. Resolution: 240x(RGB)x320 (pixels)
5. View angle (U/D/L/R): 80/80/80/80
6. Brightness: 300 cd/m2 TYP
7. Contrast Ratio: 800:1 TYP
8. Interface: 8080 parallel(9/18 bit)
9. Option: N.C
お問い合わせ
前へ
次へ
ピンの意味
サイズ
Pin No
Symbol
Description
Input/Output
Note
1
IM0
Interface select
I
2
IM3
Interface select-
I
3~6
LED K4~K1
LED-
P
7
LED A
LED+
P
8
RESET
RESET
I
9~12
GND
Ground
P
13~30
DB17~DB0
Data bus
I
31
NC
Not connect
-
32
GND
Ground
P
33
NRD
Read
I
34
NWR
Write
I
35
NDC(RS)
Data/Command select
I
36
VCC
Power supply for I/O
P
37~39
GND
Ground
P
40
VCI
Power supply for analog
P
