  • 5.7" TFT液晶螢幕顯示模組
VT057D
1.Screen Size: 5.7 inch

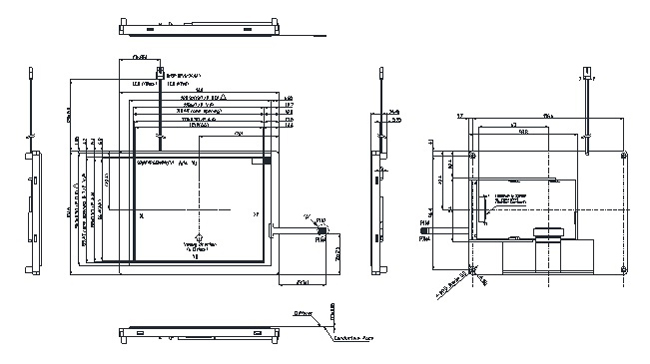

2.Dimension (W x H x T): 144.0 x 104.6 x 14.45 mm
3.Active Area: 115.2 x 86.4 mm
4.Resolution: 320x(RGB)x240 (pixels)
5.View angle (U/D/L/R):40/60/60/60
6.Brightness: 350 cd/m2
7.Contrast Ratio: 450:1
8.Interface: RGB interface
Pin Symbol Pin Symbol Pin Symbol
1 DGND 21 B1
2 DCLK 22 B2
3 HSYNC 23 B3
4 VSYNC 24 B4
5 GND 25 B5
6 R0 26 GND
7 R1 27 DEN
8 R2 28 VCC
9 R3 29 VCC
10 R4 30 LRC
11 R5 31 UDC
12 GND 32 NC
13 G0 33 GND
14 G1
15 G2
16 G3
17 G4
18 G5
19 GND
20 B0
