VT015A
1. Screen Size: 1.54 inch
2. Dimension (W x H x T): 31.52 x 33.72 x 1.7 mm
3. Active Area: 27.72 x 27.72 mm
4. Resolution: 240x(RGB)x240 (pixels)
5. View angle (U/D/L/R): 80/80/80/80
6. Brightness: 400 cd/m2 TYP
7. Contrast Ratio: 800:1 TYP
8. Interface: SPI-4
9. Option: N.C
Pin No Symbol Description Input/Output Note
1 GND Ground P
2 VDD Power supply P
3 NC No Connect NC
4 GND Ground P
5 D/C serial interface D/C(RS) I
6 RESET RESET I
7 /CS Chip select I
8 NC No Connect NC
9 GND Ground P
10 SCL SPI Clock I
11 SDA SPI Data I
12 GND Ground P
13 VDD Power supply P
14 LED A LED+ P
15 LED K LED- P

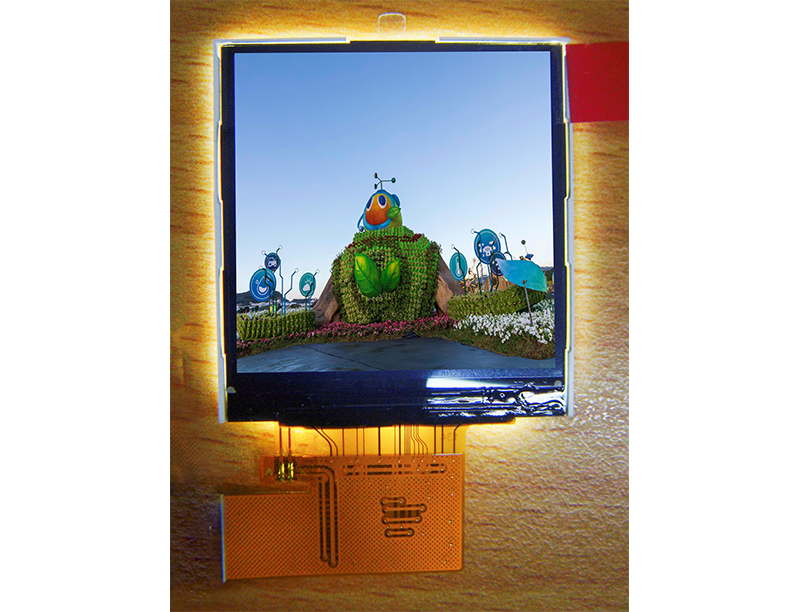

1.54 英吋 VT015A TFT 模組
